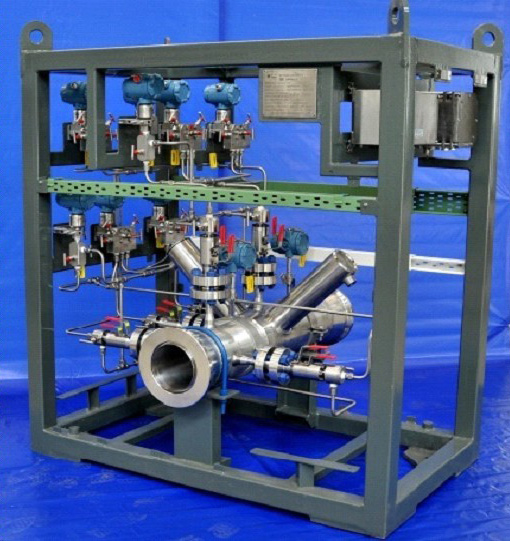

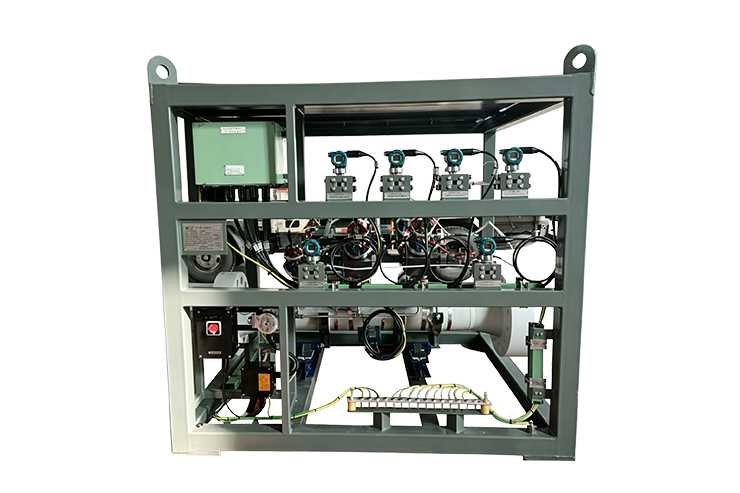

Haimo Wet Gas Meter (WGM) is a state-of-the-art technology for inline measurement of wet gas flow. The meter allows accurate measurement of liquid (water/condensate) content in the gas and individual flow rate of gas and liquid, with a very compact structure design. Depending on application requirement, the wet gas meters can be of a spool piece or skid mounted design.

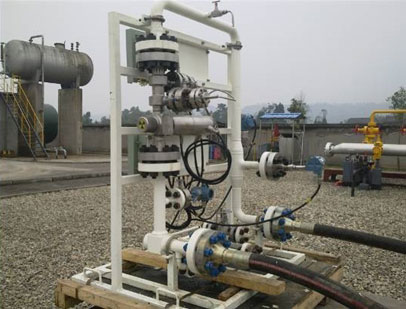

32 units of specially designed 8-inch WGM for extremely high H2S applications in UAE

Wet Gas Meter

Haimo WGM utilizes gamma ray measurement technology to determine phase fraction and a venturi meter to determine the total flow rate. An installed source emits gamma rays which travel through the flowing materials in the measurement pipe, and a detector measures the amount of gamma rays passed through the flow. Gas and liquid fractions expressed in Gas Volume Fraction (GVF) are computed in real time through the combination of gamma ray attenuation equations, and a unity assumption of phase fractions. A Multivariable Transmitter (MVT) measures pressure, temperature and differential pressure of the venturi flow meter, from which total flow rate of the multiphase stream is determined. A Data Acquisition Unit (DAU) performs all calculations and converts flow measurements from line to standard condition. Unique redundancy design enables self-verification and improves reliability.

Technical Specifications

• Compact, lightweight and modular

• Non-Intrusive

• No moving parts, low maintenance requirements

• Wide operational range

• Remote operation and self verification

• Remote operation and data acquisition

• Unique in-line wet gas model

• Low pressure loss

• Low power consumption
