Crane mounted slickline vehicle LC5250TCS

Compared with conventional production and slickline logging vehicles, HAISHI crane mounted slickline vehicle reduces the need for additional supporting vehicles and operators, resulting in cost savings in labor, fuel, maintenance and operation. This crane mounted slickline vehicle not only improves traffic safety and construction efficiency, but also contributes to minimizing carbon emissions and protecting the ecological environment. It fully complies with China's laws, regulations and standards on oilfield operation vehicles, achieving the multi-purpose functionality in a single vehicle.

Description
Features
Parameters

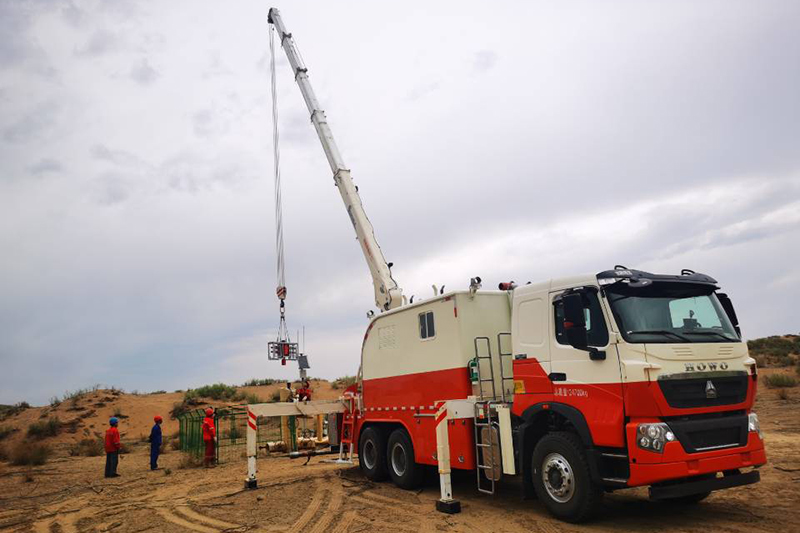

The crane is mounted in the center of the rear end in order to balance thegravity of the vehicle on the left and right sides and ensure safe driving.Equipped with four H-type outriggers (front and rear pairs) and a 13T crane, this vehicle surpasses other competitors in China with its exceptional performance. It offers a range of working spans and heights to meet different well testing requirements in different regions.The transmission system incorporates imported pumps, motors and reducers, and the metering system is supplied by internationally renowned brands.The vehicle is suitable for high-speed impact operations in gas wells, water well slickline pressure test, and recovery operations.

Basic technical specifications - crane

Items	Parameters
Maximum lifting moment	330kN·m
Maximum lifting weight of basic arm	13t
Maximum arm length	18.75m
Maximum lifting height	20.2 m
Dead weight of crane	4.6t
Maximum working pressure of crane	26MPa
Rated flow of hydraulic system	80+40 L/min
Hoisting speed	12m/s
Operation mode	Manual/standing control at right rear position of vehicle
Outrigger structural form	Double chamber telescopic square box leg
Rotary range	360 ° All rotary
Safety device	Overload protection (unloading), overwinding protection (unloading), overflow valve, lifting balance valve, rotary balance valve, amplitude balance valve
Lifting mechanism	Single lifting mechanism, hydraulic motor + planetary mechanism (normally closed brake)
Hook position	Between cab and carriage
Telescopic boom	1 Basic boom and 5 telescopic boom, synchronous expansion

Main technical specifications

Items	Parameters
Winch	Capacity	Slickline 7000m (Φ2.8mm)
	Lifting capabilities	20kN
	Lifting speed	Slickline 120-20,000m/h (impact & recovery operations)
	Transmission form	Hydraulic chain
	Hydraulic System	rexroth/DANFOSS
Metering system	Benchmark/ASEP/local brand
Chassis	Sino Truck ZZ1257N464HF1(HOWO China VI emission)
Drive form	6*4
Crew	2persons
Overall dimensions	L x W x H: 9450mmx2500mmx3900mm
Wheelbase	4325mm+1350mm
ENGINE	Model	MC11.40-61
	Capacity	297kW, 1900r/min
	Max. torque	Maximum torque output 1900N·m at 1000~1400r/min
Gearbox	HW19709XST, with synchronizer
Gross mass	25T
Max. speed	90km/h
Approach angle	20°
Departure corner	11°
